Product Description：

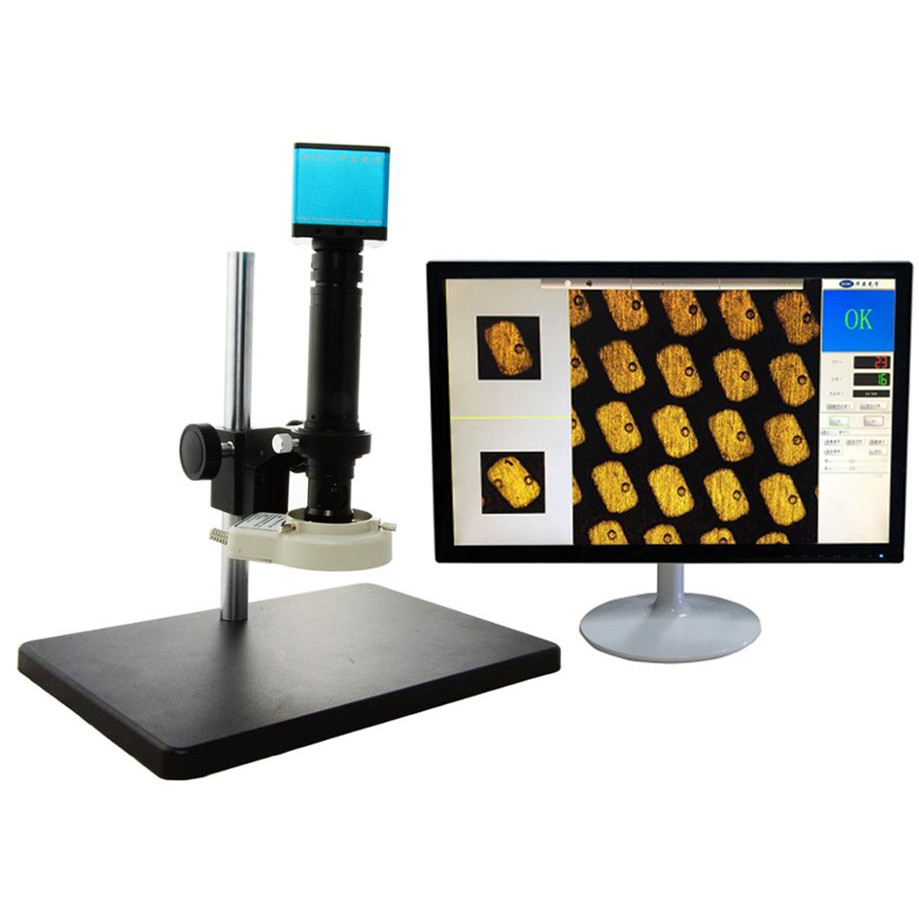

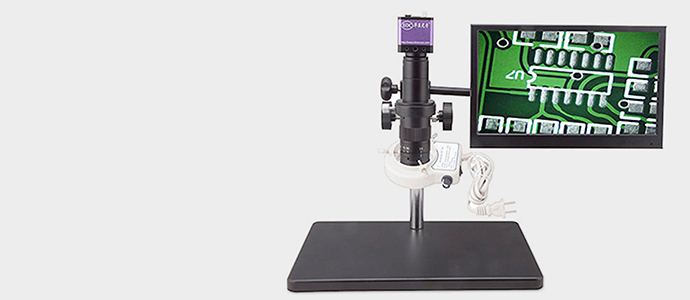

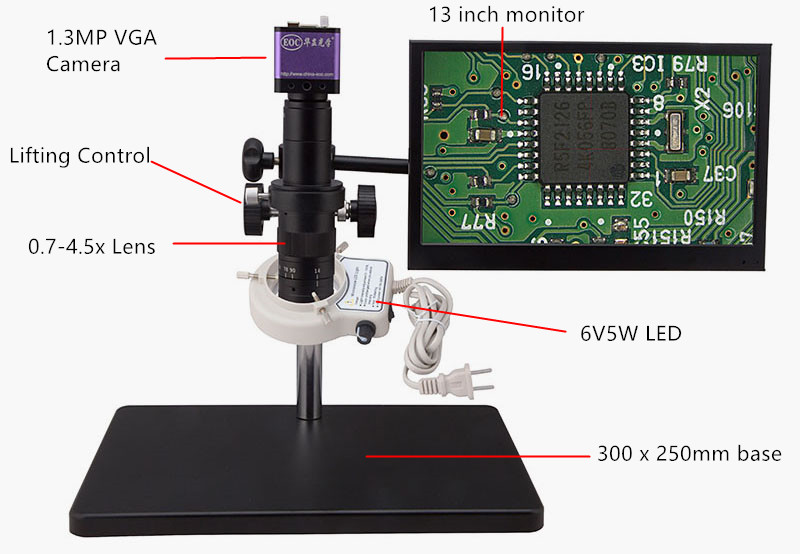

H-130Video Microscope, is a perfect combination of 1.3MP CCD camera and zoom lens, which has the functions of restraining strong light and edge enhancement, and it is suitable for the detection for different products with different material. Video Microscopes are widely used in Semiconductor Electronics, SMT, Hardware and Plastics area. To meet the requirement of surface defect detection and manufacture process analysis and testing.
Characteristics：
1) 1.3MP High Definition, Resolution is up to 1280X1024.；

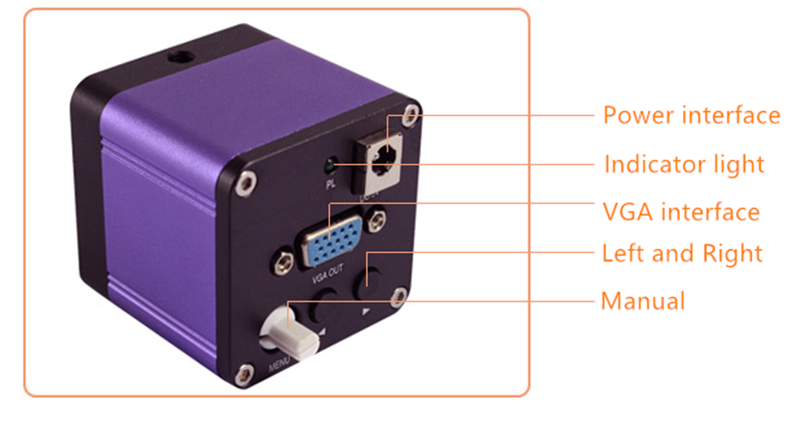

2) VGA interface, 60/fps camera；
3) 13.3 inch IPS high brightness LCD Monitor, no dark angle display；
4) With strong light and edge enhancement function, the imaging effect is superior；

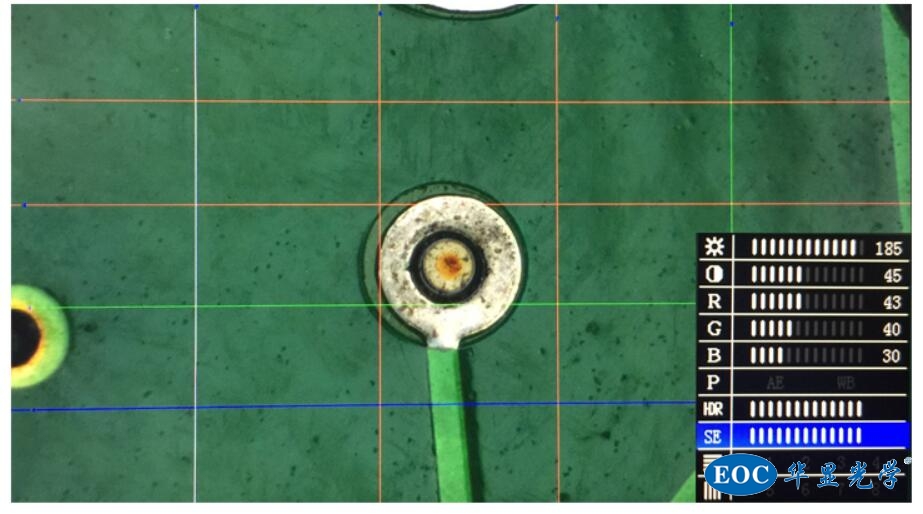

5) 4 Vertical calibration lines + 4 Horizontal calibration lines;
6) Pixel customize: 2.0MP/5.0MP/6.0MP/16MP/20MP, HDMI/USB
7) Camera function customize: taking photo, taking video, measuring, screenshot, comparing, image stitching...

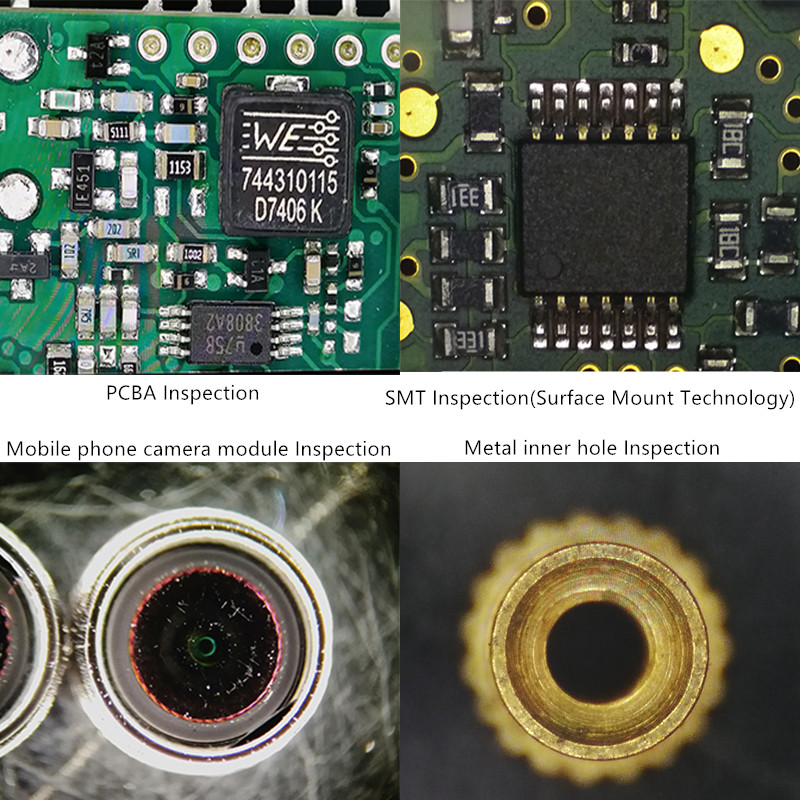

pcb soldering inspection component observation
contact
> Fill out this form
Related Products
Product Description：
H-130Video Microscope, is a perfect combination of 1.3MP CCD camera and zoom lens, which has the functions of restraining strong light and edge enhancement, and it is suitable for the detection for different products with different material. Video Microscopes are widely used in Semiconductor Electronics, SMT, Hardware and Plastics area. To meet the requirement of surface defect detection and manufacture process analysis and testing.
Characteristics：
1) 1.3MP High Definition, Resolution is up to 1280X1024.；
2) VGA interface, 60/fps camera；
3) 13.3 inch IPS high brightness LCD Monitor, no dark angle display；
4) With strong light and edge enhancement function, the imaging effect is superior；
5) 4 Vertical calibration lines + 4 Horizontal calibration lines;
6) Pixel customize: 2.0MP/5.0MP/6.0MP/16MP/20MP, HDMI/USB
7) Camera function customize: taking photo, taking video, measuring, screenshot, comparing, image stitching...
|

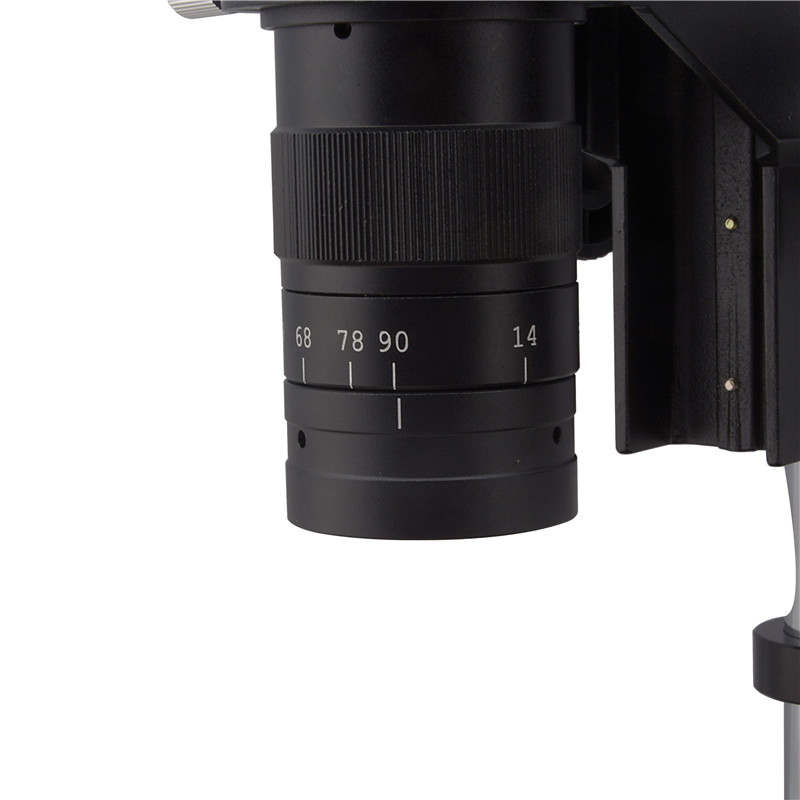

Magnification |
0.7x~4.5x |
|
Lens tube |
0.5x/1x |
|
monitor |
13寸（HDMI/VGA interface） |
|
Digital magnification |
16.5x-106x 33x-212x |
|
Output |
VGA |
|
lighting |
Led ring lighting |
|
Resolution |
1280*720/1280*1024 adjustable |
|
Frame rate |
60 fps |
|
Sensor size |
1/3 |
|
Brightness |
adjustable |
|
Contrast |
adjustable |
|
Color adjustment |
R、G、B adjust independently |
|
Balance |
One button balance |
|
Exposure way |
Manul/automatic |
|
Image storage |
none |
|
Stand |

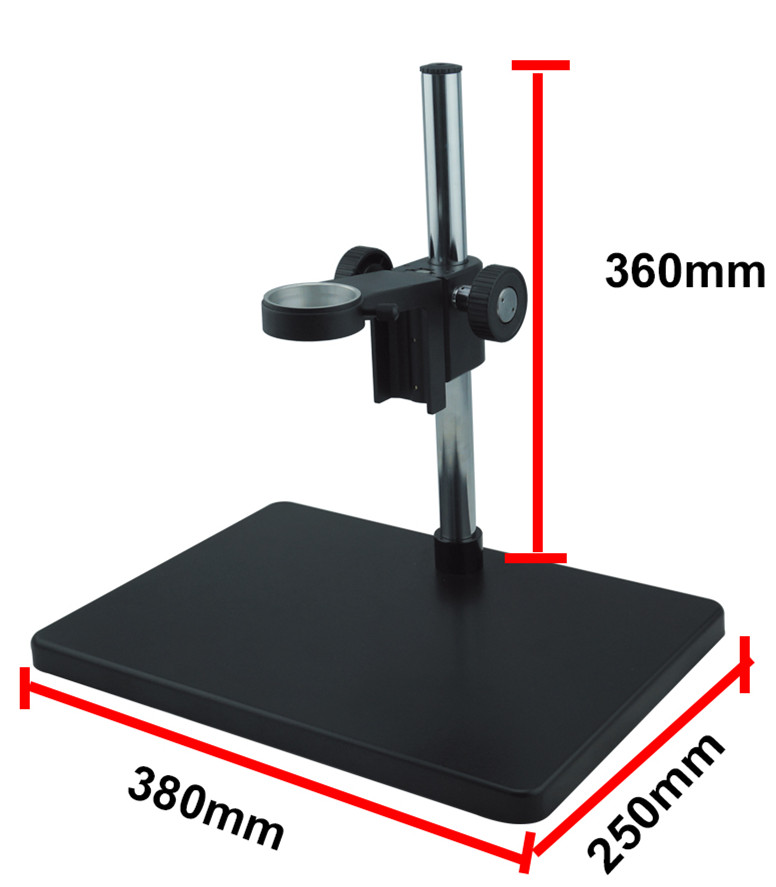

Column bracket size：380*260*20mm Lifting range:300mm Focusing range:25mm |
pcb soldering inspection component observation
