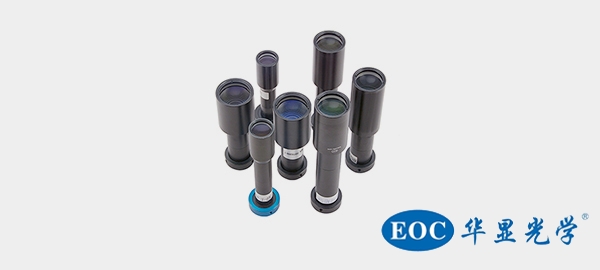

  FDT-HR Series Lens




  Introduction：

  The FDT-HR series consists of highly generic models supporting more than 1.3 million pixels (4.65 um/pixel) of the camera.
  The whole series achieves excellent image quality with high resolution and contrast.
  The pixels of FDT-HR series cameras support 1.3MP or higher.

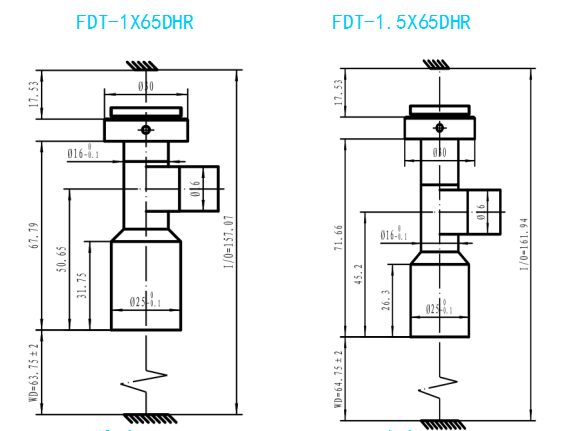

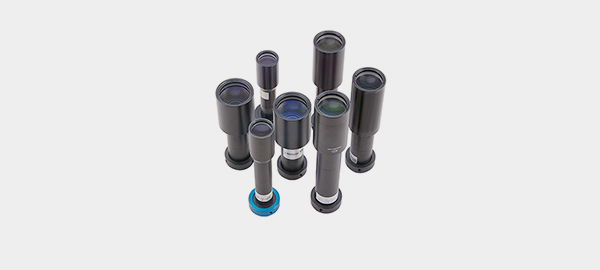

• FDT-HR Series Lens




  Working distance：65mm




  Model	Magnification	Objective distance	Working distance (mm)	Resolution	Deth of field	NA	Effective FNO	Max distortion	Max compatible CCD
  FDT-0.5X65DHR	0.5X	179.15mm	64±2	12.8μm	3mm	0.026	9.5	-0.01% or less	2/3
  FDT-0.8X65DHR	0.8X	161.58mm	65.75±2	8.4μm	1.2mm	0.04	9.9	0.02% or less	2/3
  FDT-1X65DHR	1X	157.07mm	63.75±2	7.5μm	0.88mm	0.045	11	0.02% or less	2/3
  FDT-1.5X65DHR	1.5X	161.94mm	64.75±2	5.4μm	0.42mm	0.063	12	-0.04% or less	2/3
  FDT-2X65DHR	2X	161.42mm	64.75±2	4.5μm	0.27mm	0.074	13.5	0.02% or less	2/3
  FDT-4X65DHR	4X	192.36mm	64.75±2	3μm	0.09mm	0.112	17.9	0.02% or less	2/3
  FDT-6X65DHR	6X	222.23mm	64.75±2	3μm	0.06mm	0.112	26.7	0.01% or less	2/3


















  Working distance：110mm


  Model	Magnification	Objective distance	Working distance (mm)	Resolution	Deth of field	NA	Effective FNO	Max distortion	Max compatible CCD
  FDT-0.5X65THR	0.5X	174.8mm	64±2	12.8μm	3mm	0.026	9.5	-0.01% or less	2/3
  FDT-0.8X65THR	0.8X	158.18mm	65.75±2	8.4μm	1.2mm	0.04	9.9	0.02% or less	2/3
  FDT-1X65THR	1X	153.67mm	63.75±2	7.5μm	0.88mm	0.045	11	0.02% or less	2/3
  FDT-1.5X65THR	1.5X	158.54mm	64.75±2	5.4μm	0.42mm	0.063	12	-0.04% or less	2/3
  FDT-2X65THR	2X	158.02mm	64.75±2	4.5μm	0.27mm	0.074	13.5	0.02% or less	2/3
  FDT-4X65THR	4X	188.01mm	64.75±2	3μm	0.09mm	0.112	17.9	0.02% or less	2/3
  FDT-6X65THR	6X	217.88mm	64.75±2	3μm	0.06mm	0.112	26.7	0.01% or less	2/3
