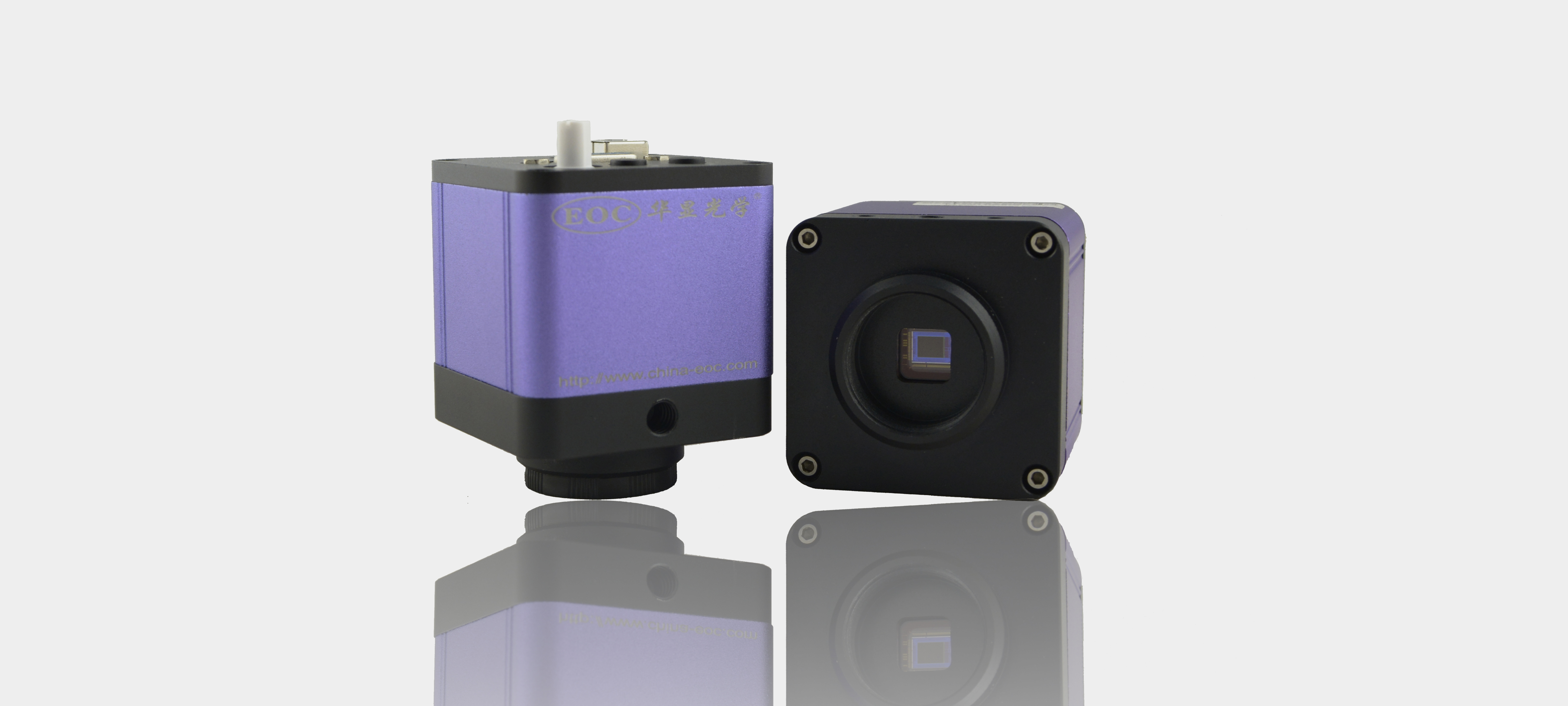

SXGA-C130 HD CCD Camera
Introduction:

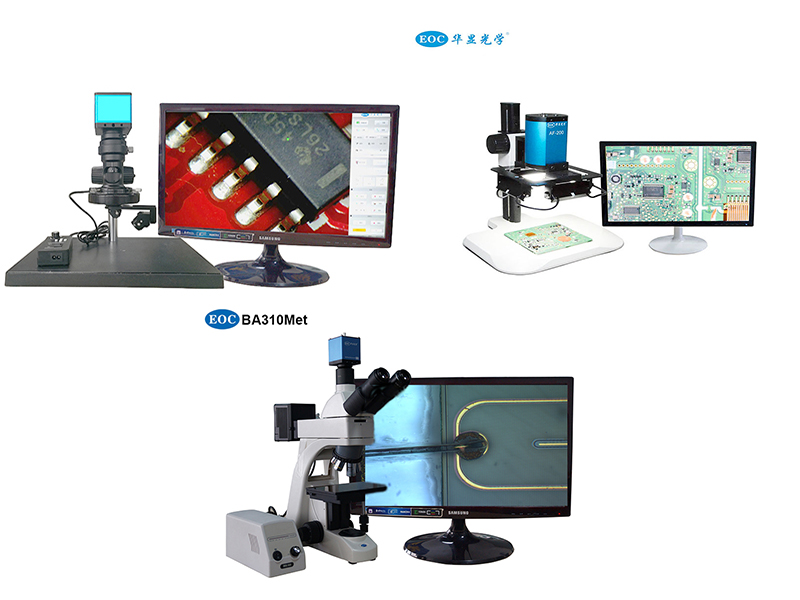

SXGA-C130 HD 1.3MP Camera，The product is widely used in microscopic image observation, which can effectively reduce visual fatigue, change from eyepiece observation to visual inspection, reduce the intensity of visual observation, greatly improve the detection accuracy and efficiency. The user-friendly menu settings, easy to operate and learn, and real-time image transmission directly with the display screen are of great help to process judgement and quality analysis.
Characteristic：
1. VGA digital signal output, directly connected to the industrial camera display;
2. High definition 1.3 million pixels, supporting 1280*1024, 1280*720 resolution switching;
3. Scanning line by line to ensure clear picture without flickering.
4,60/fps high-speed image acquisition, no shadow, delay phenomenon;
5. New functions such as suppressing strong light and edge contour enhancement are added.
6. Built-in center cross or vertical and horizontal four movable lines, which can move in full screen range;
7. New color algorithm to ensure the true reproduction of image color;
8. Humanized menu with automatic hiding function
Application：
contact
> Fill out this form
Related Products
SXGA-C130 HD CCD Camera
Introduction:
SXGA-C130 HD 1.3MP Camera，The product is widely used in microscopic image observation, which can effectively reduce visual fatigue, change from eyepiece observation to visual inspection, reduce the intensity of visual observation, greatly improve the detection accuracy and efficiency. The user-friendly menu settings, easy to operate and learn, and real-time image transmission directly with the display screen are of great help to process judgement and quality analysis.
Characteristic：
1. VGA digital signal output, directly connected to the industrial camera display;
2. High definition 1.3 million pixels, supporting 1280*1024, 1280*720 resolution switching;
3. Scanning line by line to ensure clear picture without flickering.
4,60/fps high-speed image acquisition, no shadow, delay phenomenon;
5. New functions such as suppressing strong light and edge contour enhancement are added.
6. Built-in center cross or vertical and horizontal four movable lines, which can move in full screen range;
7. New color algorithm to ensure the true reproduction of image color;
8. Humanized menu with automatic hiding function
Application：
SXGA-C130 HD CCD Camera
Specification:
|
Model |
SXGA-C130 |
|
Pixel |
130万像素 |
|
Resolution |
支持1280*1024、1280*720分辨率切换 |
|
Sensor |
1/3英寸 |
|
Frame |
60/fps |
|
White Balance |
一键式设置，可手动或自动调节 |
|
Suppression of strong light selection |
3 levels adjustment |
|
Edge Enhancement Mode |
3 levels adjustment |
|
Color adjustment |
R、G、B 3 colors |
|
Built-in crossbar |
Built-in central cross or 8 (four horizontal and four vertical) movable lines |
|
Output |
VGA |
|
Lens interface |
C type interface |
| Ouput voltage |
DC-5V |
|
Dimension |
49*49*47mm |
|
Wroking temperature |
0-80℃ |
|
Photograph and memory funtion |
No |
